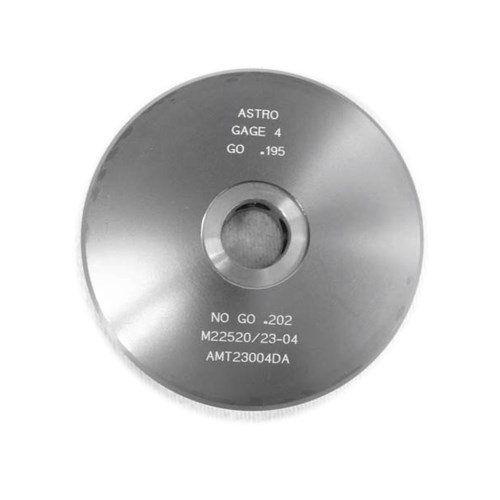

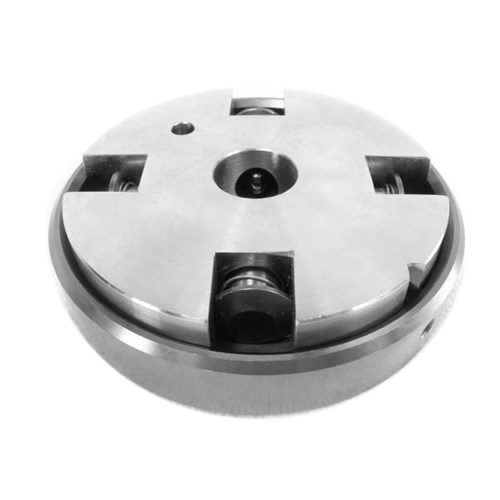

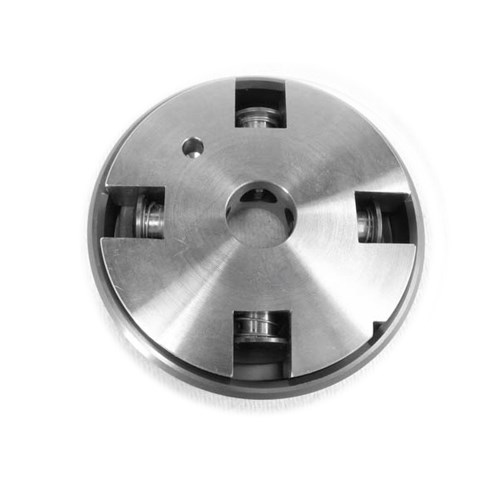

AMT23004DA (M22520/23-04) Die Assembly, DMC WA23-4

AMT23004DA (M22520/23-04) Die Assembly, DMC WA23-4

$264.41

AMT23004DA, mil spec M22520/23-04, is a die assembly used with AMT23B, mil spec M22520/23-01, to crimp size 4 machined pin and socket contacts installed in MIL-C-5015 front and rear release connectors. Contacts M39029/29-4-4, M39029/29-215, M39029/30-4-4, M39029/30-221,M39029/44-292, M39029/45-299, MS90453-4-4, MS90454-4-4
Other manufacturers CCH-12-7, 995-0001-192, 414DA-4N, TP201328-4D.

x

Description

AMT23004DA, mil spec M22520/23-04, is a die assembly used with AMT23B, mil spec M22520/23-01, to crimp size 4 machined pin and socket contacts installed in MIL-C-5015 front and rear release connectors. Contacts M39029/29-4-4, M39029/29-215, M39029/30-4-4, M39029/30-221,M39029/44-292, M39029/45-299, MS90453-4-4, MS90454-4-4
Other manufacturers CCH-12-7, 995-0001-192, 414DA-4N, TP201328-4D.

Additional information

Weight 1.25 lbs
