AMT23002DA (M22520/23-02) Die Assembly, DMC WA23-2

AMT23002DA (M22520/23-02) Die Assembly, DMC WA23-2

$264.41

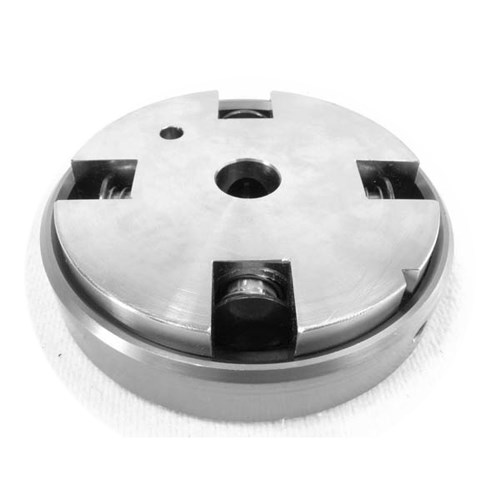

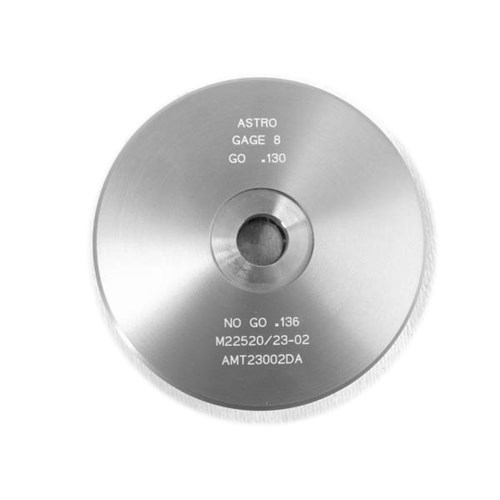

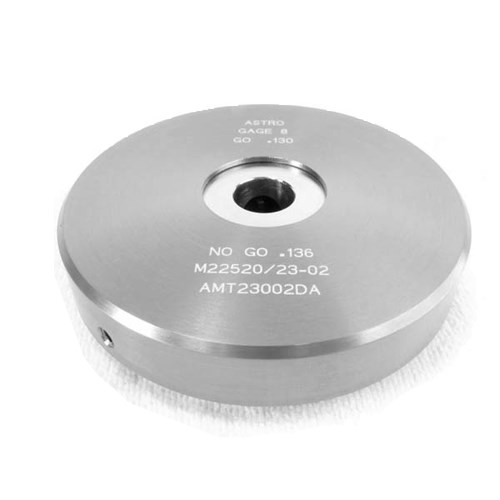

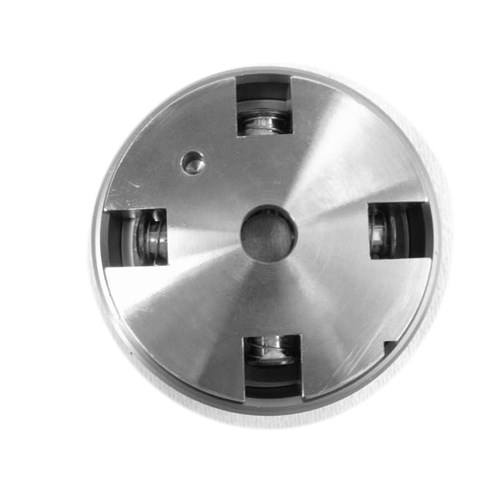

AMT23002DA, mil spec M22520/23-02, is a die assembly used with AMT23B, mil spec M22520/23-01, to crimp size 8 machined pin and socket contacts installed in MIL-C-5015 front and rear release connectors. Contacts M39029/29-214, M39029/30-220, M39029/44-291, M39029/45-298, M39029/29-8-8, M39029/30-8-8, MS90453-8-8, MS90454-8-8.
Other manufacturers CCH-8-1, 414DA-8N, TP201328-8D, 5120-01-117-3889, 995-0001-187.

x

Description

AMT23002DA, mil spec M22520/23-02, is a die assembly used with AMT23B, mil spec M22520/23-01, to crimp size 8 machined pin and socket contacts installed in MIL-C-5015 front and rear release connectors. Contacts M39029/29-214, M39029/30-220, M39029/44-291, M39029/45-298, M39029/29-8-8, M39029/30-8-8, MS90453-8-8, MS90454-8-8.
Other manufacturers CCH-8-1, 414DA-8N, TP201328-8D, 5120-01-117-3889, 995-0001-187.

Additional information

Weight 1.26 lbs
Manufacturer
