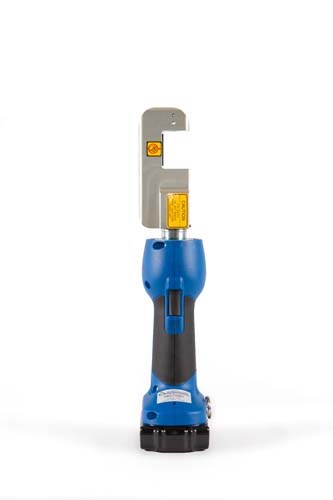

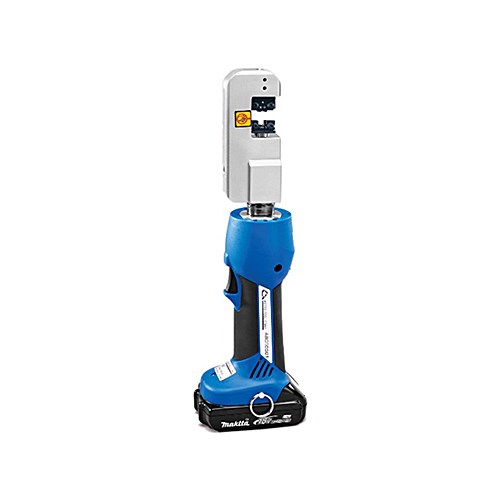

ABOT0501 Battery Powered C-Frame Crimp Tool, DMC HXE4B

ABOT0501 Battery Powered C-Frame Crimp Tool, DMC HXE4B

$3,008.05

The ABOT0501 is a battery powered version of the “Gold C-Frame” M22520/5-01 crimping tool. It is designed to address the ever growing interest in ergonomic or powered crimping tools to alleviate problems with carpal tunnel and other repetitive motion injuries.
Designed to accommodate all of the same die sets available for the M22520/5-01 mil-spec crimper the ABOT0501 generates over one ton of crimping force enabling it to perform full-cycle crimps on even the largest application in the M22520/5-01’s range.

The ABOT0501 meets the requirements of RoHS Directive 2002/95/EC.

SPECIFICATIONS:
• Length: 14.5″ (368 mm)
• Width: 2.87″ (72.9 mm)
• Depth: 4.5″ (114.3 mm) Weight (with battery): 3.18 lb (1.4 kg)
•Sound Level: 75 db(A) at 1 meter
•Vibration: <8.2 ft/s2 (2.5 m/s2) •Hydraulic Oil: Shell Tellus® T-15 •Charging Voltage: 18 VDC •Charging Time: 15 minutes •2 batteries included with each new tool BATTERY CHARGER (P/N: ABTC-110): •Input Voltage: 120 VAC, 50-60 Hz (240 VAC, 50-60 Hz P/N ABTC-240) •Output Voltage: 7.2-18 VDC, 1.5 A •Trickle Charge Feature •Weight: 2.2 lb (1 kg) FEATURES: •Ergonomic design allows one-handed operation •Die automatically opens when crimp is complete •Die can be retracted mid-cycle to adjust connector •Head rotates 350 degrees •Red LED to display the current status of the unit CRIMP CAPACITIES: •#26 to #10 AWG •Max. Crimp Force: 1.5 Tons (13.3 kN) •Avg. Crimp Time: 2 seconds •Avg. Crimps per Charge: 200 PRODUCT INCLUDES: Carrying Case, Two 18v Batteries, One Battery Charger

Quantity Discount (%) Price
1 - 9 $3,008.05
10 - 25 5 % $2,857.65
26+ 10 % $2,707.25
SKU: ABOT0501 Category: Tags: ,

Description

The ABOT0501 is a battery powered version of the “Gold C-Frame” M22520/5-01 crimping tool. It is designed to address the ever growing interest in ergonomic or powered crimping tools to alleviate problems with carpal tunnel and other repetitive motion injuries.
Designed to accommodate all the same die sets available for the M22520/5-01 mil-spec crimper the ABOT0501 generates over one ton of crimping force enabling it to perform full-cycle crimps on even the largest application in the M22520/5-01’s range.
The ABOT0501 meets the requirements of RoHS Directive 2002/95/EC.
SPECIFICATIONS:
• Length: 14.5″ (368 mm)
• Width: 2.87″ (72.9 mm)
• Depth: 4.5″ (114.3 mm) Weight (with battery): 3.18 lb (1.4 kg)
•Sound Level: 75 db(A) at 1 meter
•Vibration: <8.2 ft/s2 (2.5 m/s2) •Hydraulic Oil: Shell Tellus® T-15 •Charging Voltage: 18 VDC •Charging Time: 15 minutes •2 batteries included with each new tool BATTERY CHARGER (P/N: ABTC-110): •Input Voltage: 120 VAC, 50-60 Hz (240 VAC, 50-60 Hz P/N ABTC-240) •Output Voltage: 7.2-18 VDC, 1.5 A •Trickle Charge Feature •Weight: 2.2 lb (1 kg) FEATURES: •Ergonomic design allows one-handed operation •Die automatically opens when crimp is complete •Die can be retracted mid-cycle to adjust connector •Head rotates 350 degrees •Red LED to display the current status of the unit CRIMP CAPACITIES: •#26 to #10 AWG •Max. Crimp Force: 1.5 Tons (13.3 kN) •Avg. Crimp Time: 2 seconds •Avg. Crimps per Charge: 200 PRODUCT INCLUDES: Carrying Case, Two 18v Batteries, One Battery Charger

Additional information

Weight 3.18 lbs
Manufacturer
