616406 (M22520/1-11) Turret Head DMC TP465

616406 (M22520/1-11) Turret Head DMC TP465

$87.16

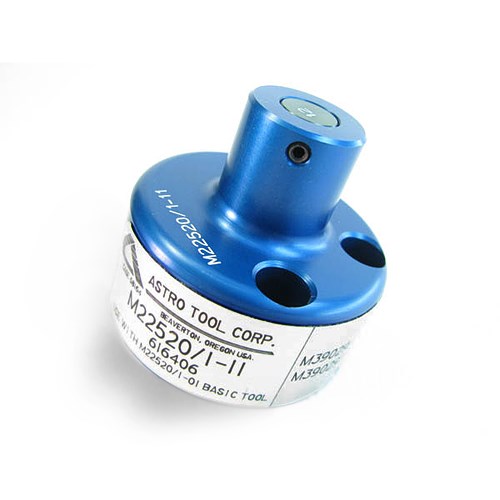

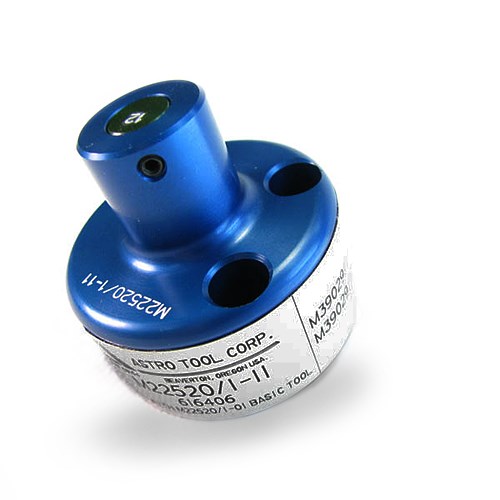

616406, mil spec M22520/1-11, is a single position head used with 615708, mil spec M22520/1-01, crimp tool frame on size 12 pin M39029/11-147 and socket M39029/12-151 contacts installed in MIL-C-81659 Series 2 (ARINC 404) rear release rectangular rack and panel connectors.
ITT Cannon part number 995-0002-027 for contacts 030-2045-000, 031-1059-001, 031-1059-002

Quantity Discount (%) Price
1 - 9 $87.16
10 - 25 5 % $82.80
26+ 10 % $78.44

Description

616406, mil spec M22520/1-11, is a single position head used with 615708, mil spec M22520/1-01, crimp tool frame on size 12 pin M39029/11-147 and socket M39029/12-151 contacts installed in MIL-C-81659 Series 2 (ARINC 404) rear release rectangular rack and panel connectors.
ITT Cannon part number 995-0002-027 for contacts 030-2045-000, 031-1059-001, 031-1059-002

Additional information

Weight 0.13 lbs
