616334 (M22520/7-09) ASTRO TOOL Positioner DMC 86-11S

616334 (M22520/7-09) ASTRO TOOL Positioner DMC 86-11S

$69.99

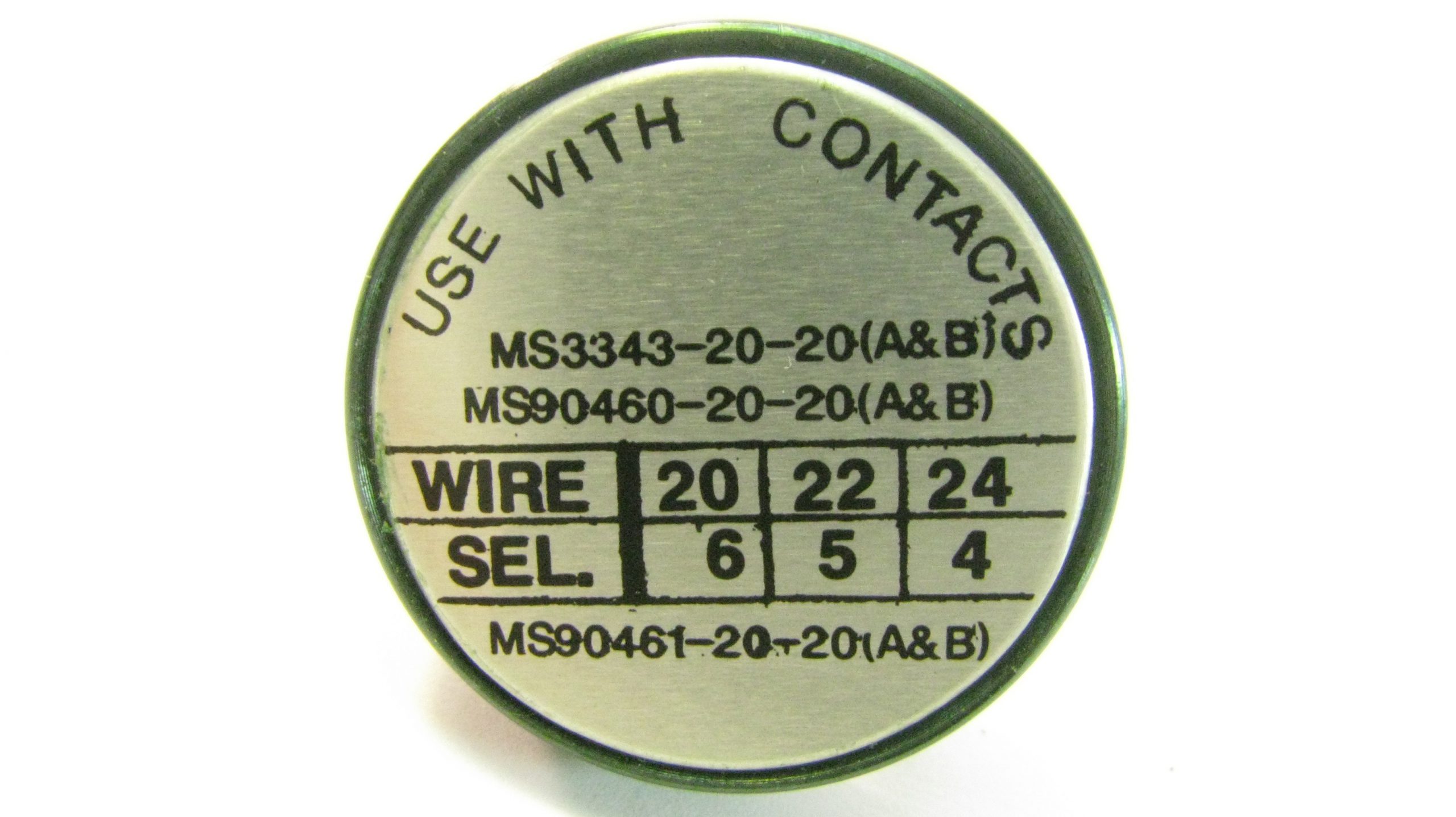

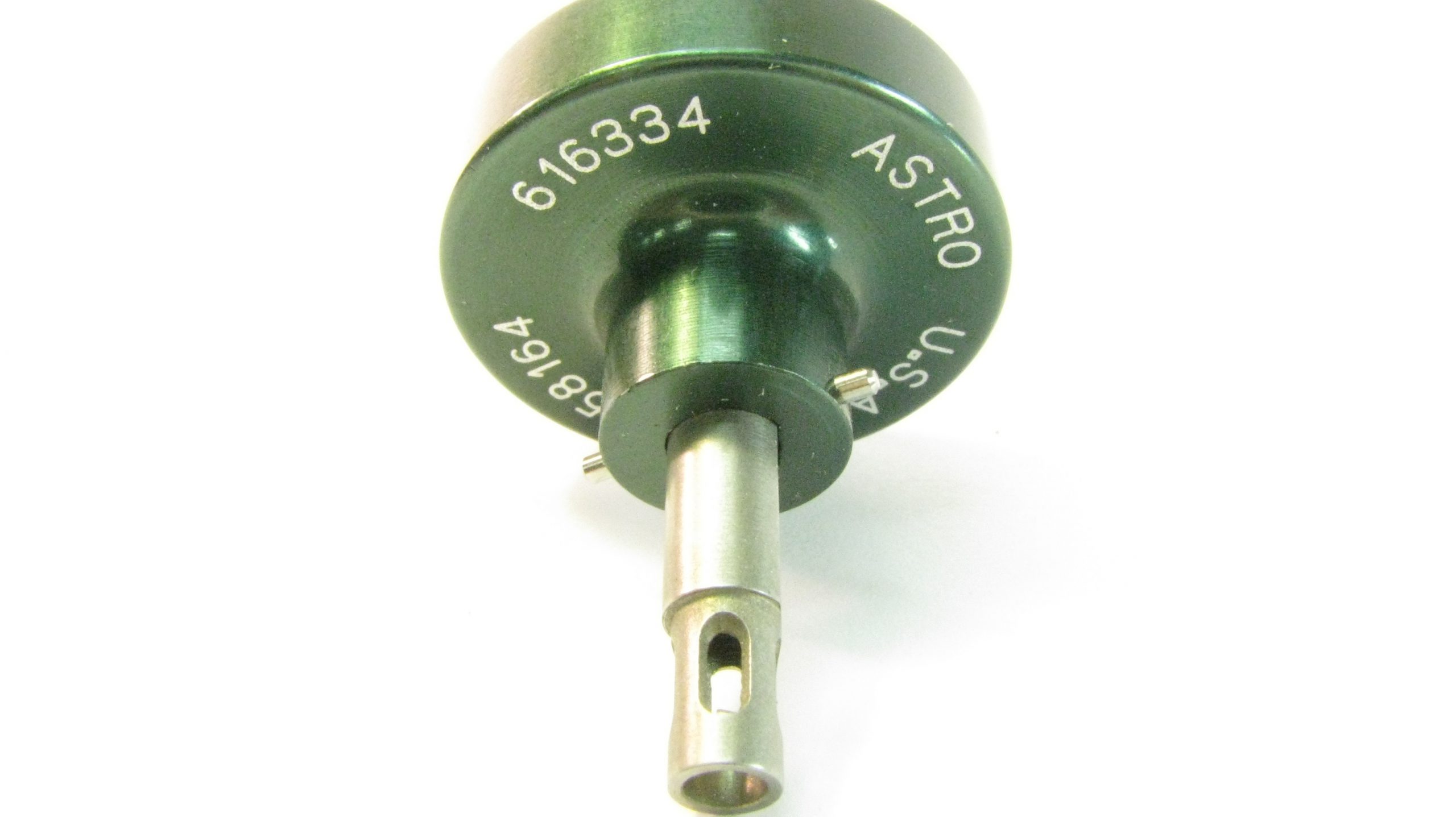

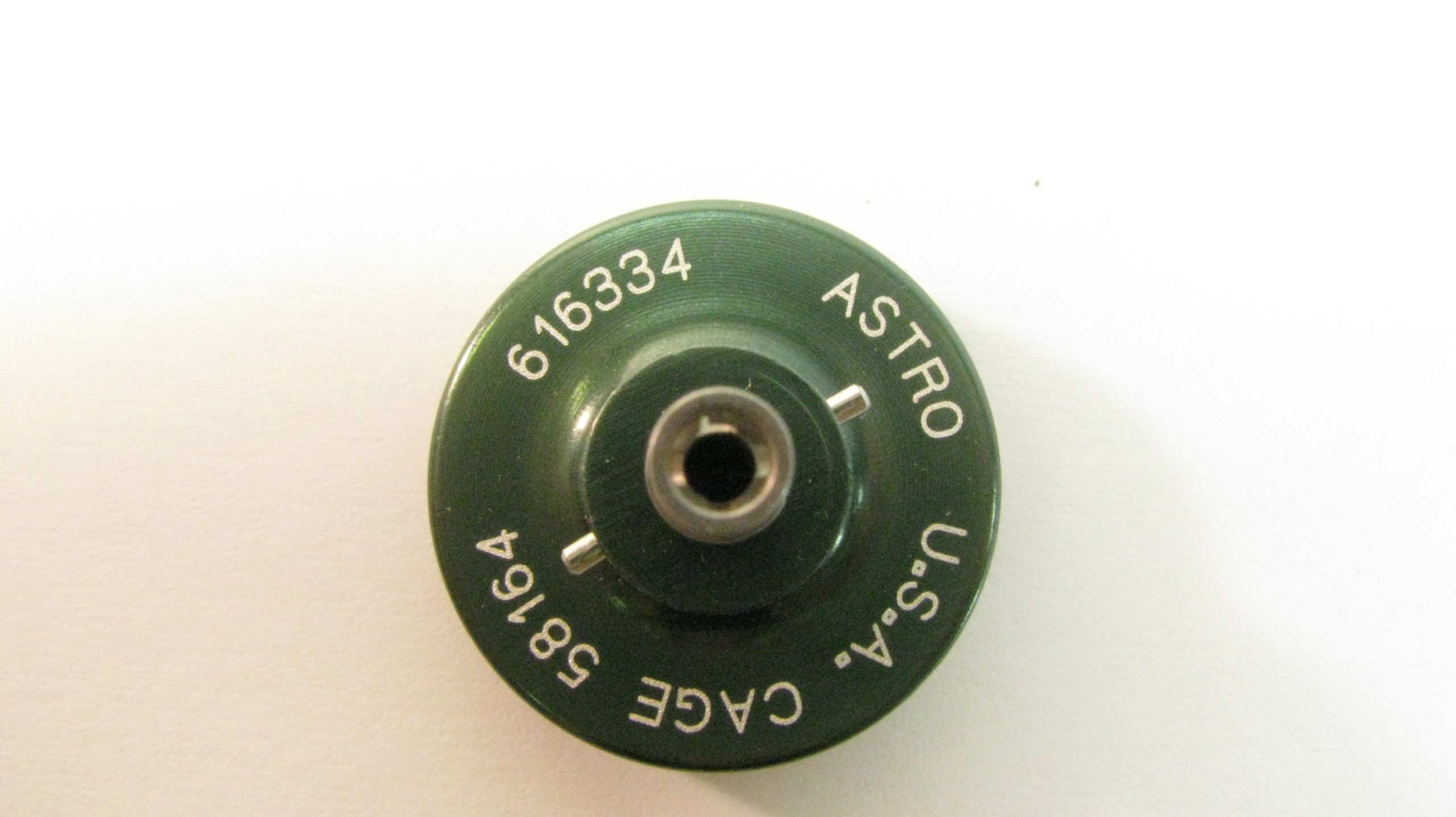

616334, mil spec M22520/7-09, is a bayonet positioner used with 616336, mil spec M22520/7-01, crimp tool frame on size 20 pin and socket contacts installed in MIL-C-81511 Series 1 & 2 front release circular connectors. Contact numbers: MS3343A-20-20, MS3343B-20-20, MS90460A-20-20, MS90460B-20-20, MS90461A-20-20, MS90461B-20-20, M39029/33-266, M39029/46-306, M39029/47-316

Available on backorder

Quantity Discount (%) Price
1 - 9 $69.99
10 - 25 5 % $66.49
26+ 10 % $62.99

Description

616334, mil spec M22520/7-09, is a bayonet positioner used with 616336, mil spec M22520/7-01, crimp tool frame on size 20 pin and socket contacts installed in MIL-C-81511 Series 1 & 2 front release circular connectors. Contact numbers: MS3343A-20-20, MS3343B-20-20, MS90460A-20-20, MS90460B-20-20, MS90461A-20-20, MS90461B-20-20, M39029/33-266, M39029/46-306, M39029/47-316

Additional information

Weight 0.03 lbs
