616329 (M22520/7-04) Positioner DMC 86-3
$65.03

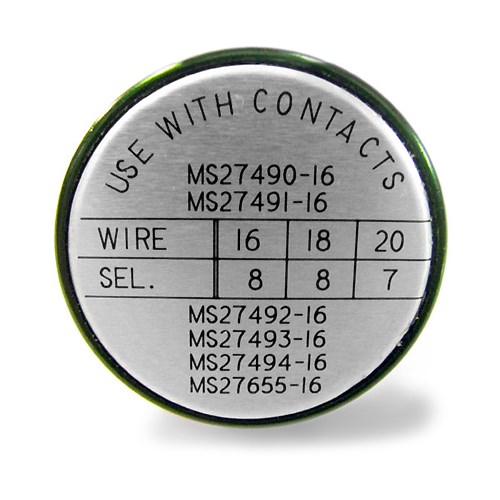

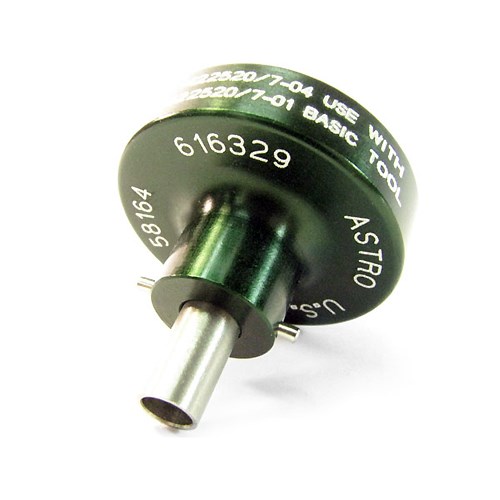

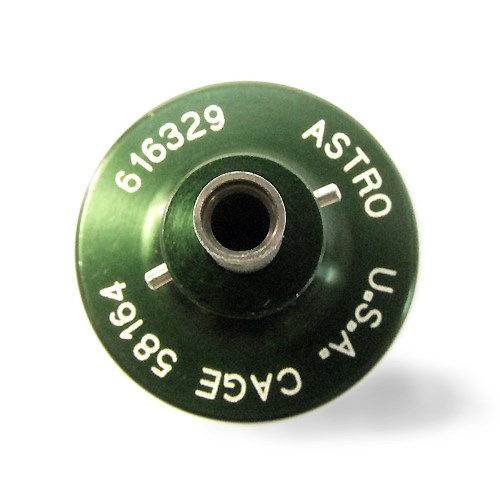

616329, mil spec M22520/7-04, is a bayonet positioner used with the 616336, mil spec M22520/7-01, crimp tool frame on size 16 pin and socket contacts installed in MIL-C-38999 rear release circular connectors. Contact numbers: M39029/56-352, M39029/57-358, M39029/58-364, M39029/87-478, M39029/87-479, M39029/87-480, M39029/87-481, M39029/88-490, M39029/88-491, M39029/88-492, M39029/88-493, M39029/89-502, M39029/89-503, M39029/89-504 and M39029/89-505
Description
616329, mil spec M22520/7-04, is a bayonet positioner used with the 616336, mil spec M22520/7-01, crimp tool frame on size 16 pin and socket contacts installed in MIL-C-38999 rear release circular connectors. Contact numbers: M39029/56-352, M39029/57-358, M39029/58-364, M39029/87-478, M39029/87-479, M39029/87-480, M39029/87-481, M39029/88-490, M39029/88-491, M39029/88-492, M39029/88-493, M39029/89-502, M39029/89-503, M39029/89-504 and M39029/89-505
Additional information
| Weight | 0.03 lbs |
|---|---|
| Manufacturer |
