616327 (M22520/7-02) ASTRO TOOL Positioner DMC 86-1S

616327 (M22520/7-02) ASTRO TOOL Positioner DMC 86-1S

$64.21

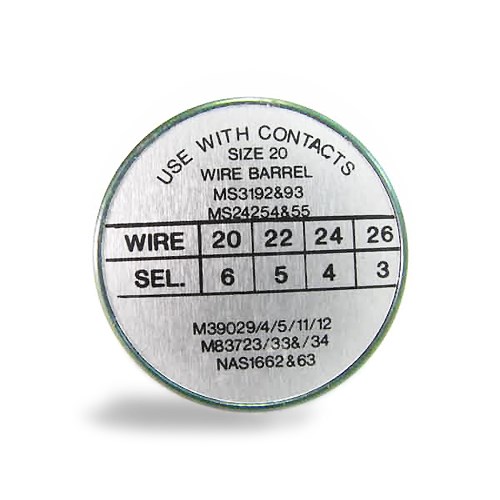

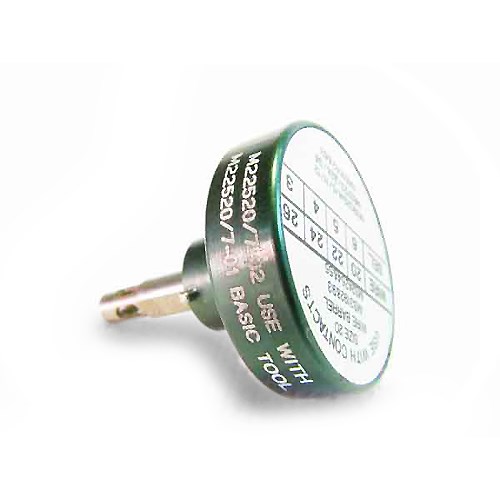

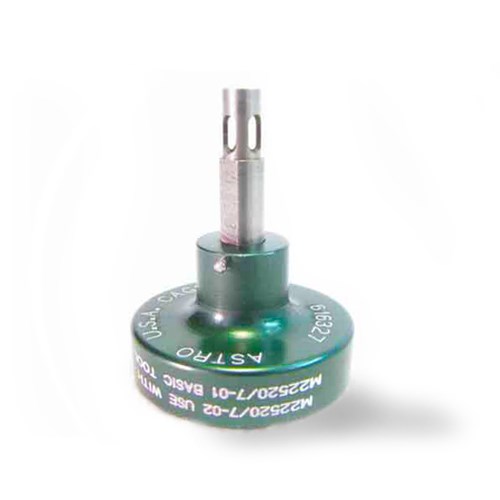

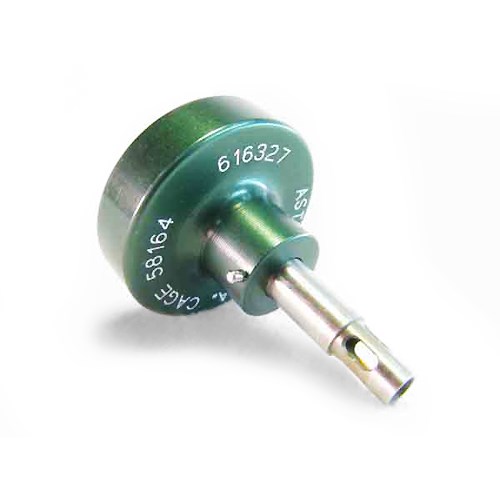

616327, mil spec M22520/7-02, is a bayonet positioner used with the 616336, mil spec M22520/7-01, crimp tool frame on size 20 pin and socket contacts installed in MIL-C-5015, MIL-C-26482, MIL-C-26500, and MIL-C-83723 circular connectors. Contact numbers: MS3192A20A, MS3193A20A, MS24254-20P, MS24255-20S, M83723/33B20, M83723/34B20, NAS1662-20, NAS1663/20, M39029/4-110, M39029/5-115, M39029/11-145, M39029/12-149, M39029/31-223, M39029/31-224, M39029/31-225, M39029/31-226, M39029/31-227, M39029/31-240, M39029/31-241, M39029/31-448, M39029/32-242, M39029/32-243, M39029/32-224, M39029/32-245, M39029/32-246, M39029/32-259, M39029/32-260, M39029/32-449, M39029/92-532, M39029/93-538, M39029/94-542

Quantity Discount (%) Price
1 - 9 $64.21
10 - 25 5 % $61.00
26+ 10 % $57.79
SKU: 616327 Category: Tags: , ,

Description

616327, mil spec M22520/7-02, is a bayonet positioner used with the 616336, mil spec M22520/7-01, crimp tool frame on size 20 pin and socket contacts installed in MIL-C-5015, MIL-C-26482, MIL-C-26500, and MIL-C-83723 circular connectors. Contact numbers: MS3192A20A, MS3193A20A, MS24254-20P, MS24255-20S, M83723/33B20, M83723/34B20, NAS1662-20, NAS1663/20, M39029/4-110, M39029/5-115, M39029/11-145, M39029/12-149, M39029/31-223, M39029/31-224, M39029/31-225, M39029/31-226, M39029/31-227, M39029/31-240, M39029/31-241, M39029/31-448, M39029/32-242, M39029/32-243, M39029/32-224, M39029/32-245, M39029/32-246, M39029/32-259, M39029/32-260, M39029/32-449, M39029/92-532, M39029/93-538, M39029/94-542

Additional information

Weight 0.03 lbs
