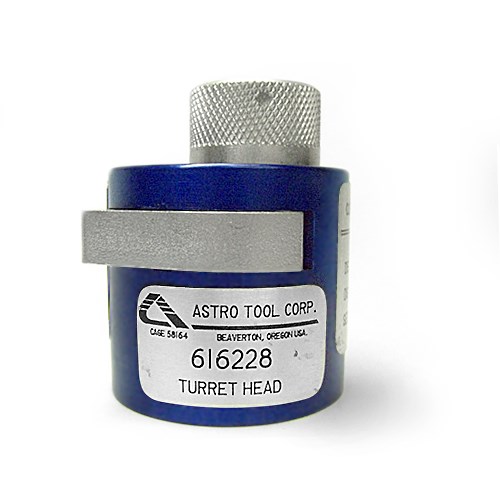

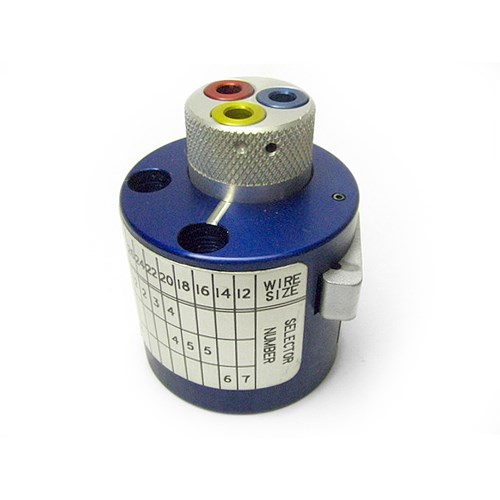

616228 Turret Head DMC TH18

$145.71

The 616228 is a turret head used with the 615708, mil spec M22520/1-01, crimp tool frame for size 20, 16, and 12 pin and socket contacts installed in Deutsch DS Series circular front release connectors. Contact numbers: 800-12/30-3, 800-12/32-3, 800-16/30-3, 800-16/32-1, 800-20/28-1, 800-20/30-1, 800-20/32-1.

Quantity Discount (%) Price
1 - 9 $145.71
10 - 25 12.85 % $126.99
26+ 17.43 % $120.31

Description

The 616228 is a turret head used with the 615708, mil spec M22520/1-01, crimp tool frame for size 20, 16, and 12 pin and socket contacts installed in Deutsch DS Series circular front release connectors. Contact numbers: 800-12/30-3, 800-12/32-3, 800-16/30-3, 800-16/32-1, 800-20/28-1, 800-20/30-1, 800-20/32-1.

Additional information

Weight 0.24 lbs
Manufacturer
