615726 (M22520/2-10) Positioner DMC K43

615726 (M22520/2-10) ASTRO TOOL Positioner
615726 (M22520/2-10) ASTRO TOOL Positioner DMC K43-20175262
615726 (M22520/2-10) ASTRO TOOL Positioner DMC K43-20175263

615726 (M22520/2-10) Positioner DMC K43

$71.59

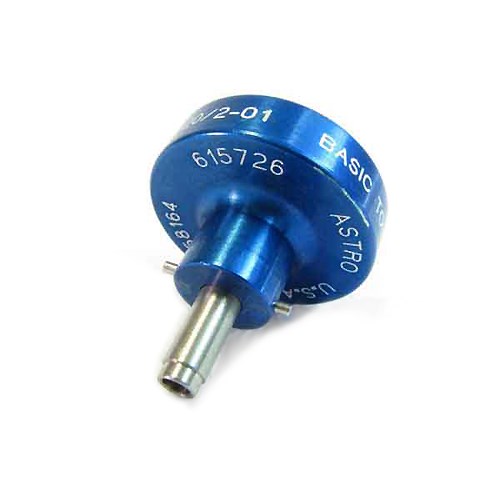

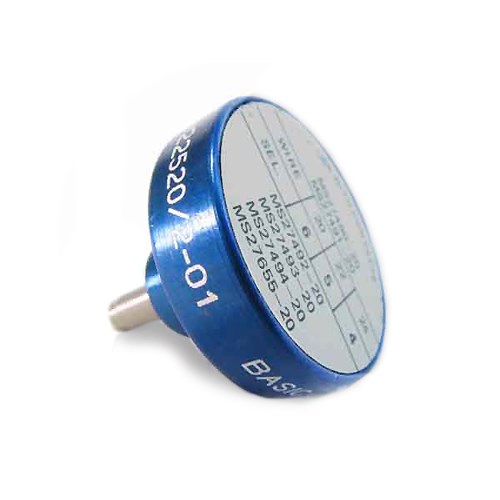

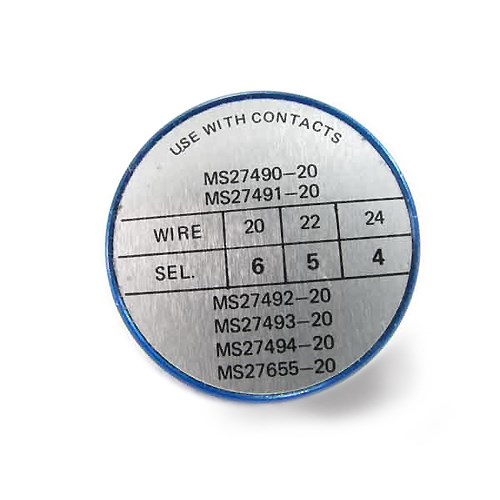

The 615726, mil spec M22520/2-10, is a bayonet positioner used with the 615717, mil spec M22520/2-01, crimp tool frame on size 20 pin and socket contacts installed in MIL-C-38999 circular connectors. Contact numbers: MS27490-20, MS27491-20, MS27492-20, MS27493-20, MS27494-20, M39029/56-351, M39029/57-357, M39029/58-363, M39029/87-474, M39029/87-475, M39029/87-476, M39029/87-477, M39029/88-486, M39029/88-487, M39029/88-488, M39029/88-489, M39029/89-498, M39029/89-499, M39029/89-500, M39029/89-501.

Other manufacturer’s part numbers 809 826, 809826, 809-826

Quantity Discount (%) Price
1 - 9 — $71.59
10 - 25 5 % $68.01
26+ 10 % $64.43
SKU: 615726 Category: Tags: , , , ,

Description

The 615726, mil spec M22520/2-10, is a bayonet positioner used with the 615717, mil spec M22520/2-01, crimp tool frame on size 20 pin and socket contacts installed in MIL-C-38999 circular connectors. Contact numbers: MS27490-20, MS27491-20, MS27492-20, MS27493-20, MS27494-20, M39029/56-351, M39029/57-357, M39029/58-363, M39029/87-474, M39029/87-475, M39029/87-476, M39029/87-477, M39029/88-486, M39029/88-487, M39029/88-488, M39029/88-489, M39029/89-498, M39029/89-499, M39029/89-500, M39029/89-501.

Other manufacturer’s part numbers 809 826, 809826, 809-826

Additional information

Weight 0.03 lbs
