615729 (M22520/2-12) ASTRO TOOL Positioner K286 DMC

615729 (M22520/2-12) ASTRO TOOL Positioner K286 DMC

$59.66

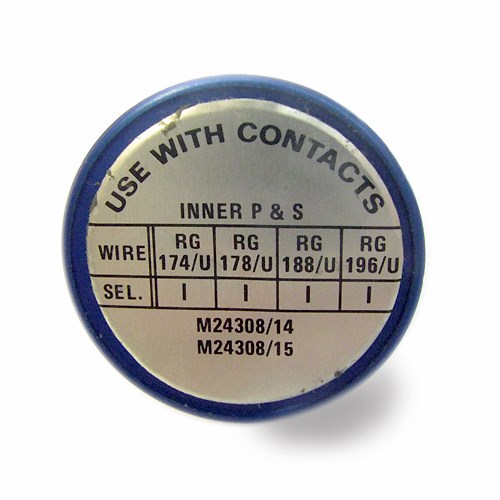

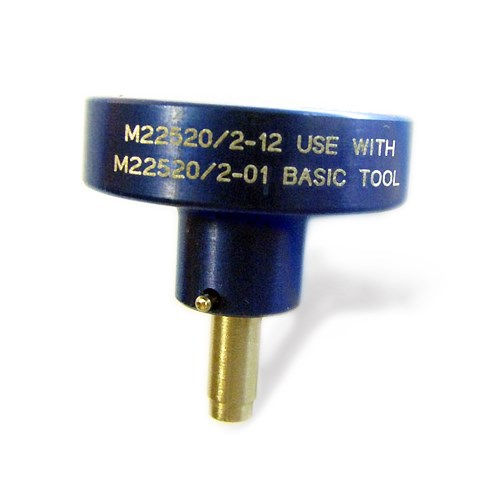

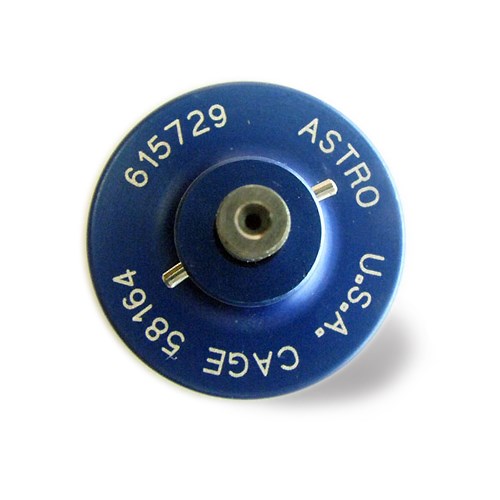

615729, mil spec M22520/2-12, is a bayonet positioner used with the 615717, mil spec M22520/2-01, crimp tool frame on inner pin and socket contacts installed in MIL-C-24308 subminiature rectangular connectors terminated to RG-174, RG-178, RG-188, and RG-196 coaxial cables. Contact numbers: M24308/14, M24308/15, M39029/65-370, M39029/65-371, M39029/66-372, M39029/66-373.

Quantity Discount (%) Price
1 - 9 $59.66
10 - 25 5.01 % $56.67
26+ 10.01 % $53.69
SKU: 615729 Category: Tags: , , ,

Description

615729, mil spec M22520/2-12, is a bayonet positioner used with the 615717, mil spec M22520/2-01, crimp tool frame on inner pin and socket contacts installed in MIL-C-24308 subminiature rectangular connectors terminated to RG-174, RG-178, RG-188, and RG-196 coaxial cables. Contact numbers: M24308/14, M24308/15, M39029/65-370, M39029/65-371, M39029/66-372, M39029/66-373.

Additional information

Weight 0.03 lbs
Manufacturer
